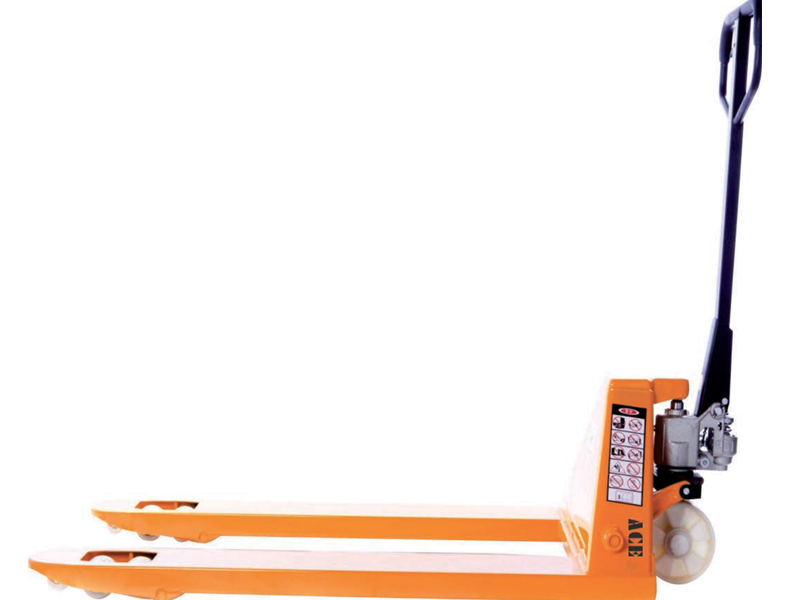

Hand Pallet Trucks
Technical Specifications
| # | Model | HPT25N | HPT25W | HPT25SS | HPT25G | HPT20WS | |
| Q | Load capacity / Related Load | Kgs | 2500 | 2500 | 2500 | 2500 | 2500 |
| H1 | Lift Height | mm | 200 | 200 | 200 | 200 | 200 |
| H2 | Lowered Fork Height | mm | 85 | 85 | 85 | 85 | 85 |
| pump | Integrated Pump | Integrated Pump | Stainless Steel Pump | Integrated Pump | Integrated Pump | ||
| Wheel (Drive/Load) Type | nylon | nylon | nylon | nylon | nylon /PU | ||
| A | Size of steering Wheel | mm | 180x50 | 180x50 | 180x50 | 180x50 | 180x50 |
| B | Size of loading Wheel | mm | 80x70 | 80x70 | 80x70 | 80x70 | 80x70 |
| D | Width across fork | 550 | 685 | 550/685 | 550/685 | 550/685 | 550/685 |
| L | Fork Length | mm | 1150 | 1150 | 1150 | 1150 | 1150 |
| W | Fork Width | mm | 160 | 160 | 160 | 160 | 180 |
| H5 | Height of Tiller | mm | 1220 | 1220 | 1220 | 1220 | 1220 |
| Service Weight | kgs | 70 | 72 | 80/84 | 72/76 | 124/128 | |
| Turning Radius | mm | 1370 | 1385 | 1370/1385 | 1370/1385 | 1370/1385 |

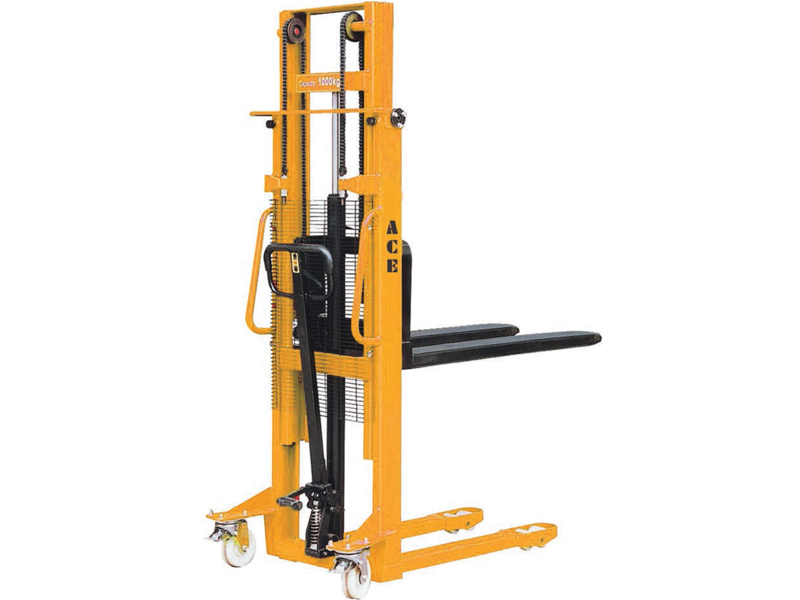

Manual Stacker
Technical Specifications
| Model | Unit | MS10 | |
| Capacity | Kgs | Q | 1000 |
| Lift Height | mm | H3 | 1600 |
| Lowered Fork Height | mm | H2 | 70 |
| Load Center | mm | L4 | 500 |
| Overall Mast Height | mm | H4 | 1980 |
| Size of Steering wheel | mm | (dia) 180x50 | |
| Size of loading Wheel | mm | (dia) 180x50 | |
| Fork Outside Distance | mm | D1 | 200-550 |
| Fork Length | mm | L1 | 1100 |
| Overall Width | mm | D2 | 760 |
| Overall Length | mm | D3 | 1550 |
| Wheel Base | mm | 1100 | |
| Wheel Type (Drive & Load) | Nylon with brake | ||
| Service Weight | kgs | 150 |
Features
- Handle with return gas spring.
- Brake, Protection wheel cap & Protection net for safety.
- High strength reliable Mast
- Ergonomic design hydraulic foot pump to help raise loads and easy hand lowering control
- Strong supporting legs
- Easy to operate
