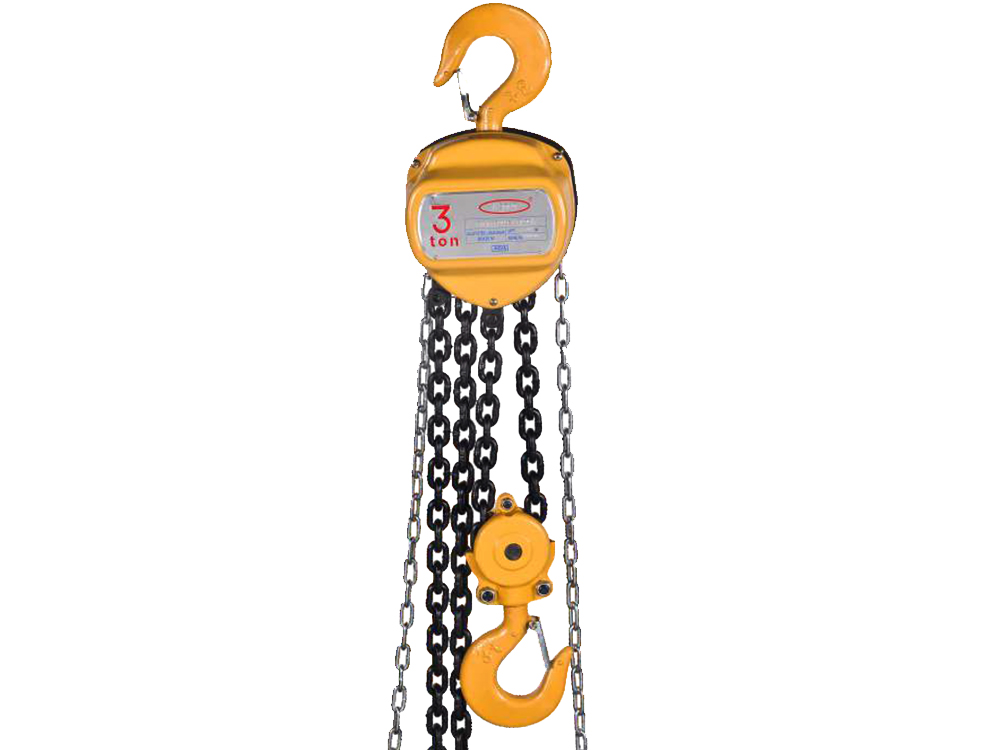

Hand Operated Chain Pulley Block
Features
- CE approved
- Conforms to International Standard
- Warrented for 12 months
- Minimal effort to lift
- Smooth function
- Triple spur gear
- Load chain grade 80
- Compact Size
- Safety factor 4 times
- Enclosed brake mechanism
Technical Specifications
| Capacity(Tonnes) | 0.5 | 1 | 1.5 | 2 | 2 | 3 | 5 | 10 | 20 |
| Model | KT0.5 | KT1 | KT1.5 | KT2(1) | KT2(2) | KT3 | KT5 | KT10 | KT20 |
| Standard Lift(Meters) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 6 |
| Column of Load Chain | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
| Load Chain Dia | 6 | 6 | 8 | 8 | 6 | 8 | 10 | 10 | 10 |
| Head room "H" mm | 280 | 306 | 368 | 444 | 368 | 520 | 616 | 700 | 1000 |
| Efforts required to lift max load (N) | 221 | 304 | 343 | 457 | 390 | 390 | 420 | 392 | 392 |
| Top / Bottom Hook opening "C" (mm) | 37 | 45 | 49 | 52 | 52 | 67 | 78 | 85 | 92 |
| Net Weight (Kg) | 8 | 11 | 16.5 | 16.7 | 16 | 23 | 37 | 69 | 229 |
| Extra weight per meter (Kg) | 1.7 | 1.7 | 2.3 | 2.3 | 2.5 | 3.7 | 5.3 | 9.6 | 19.4 |

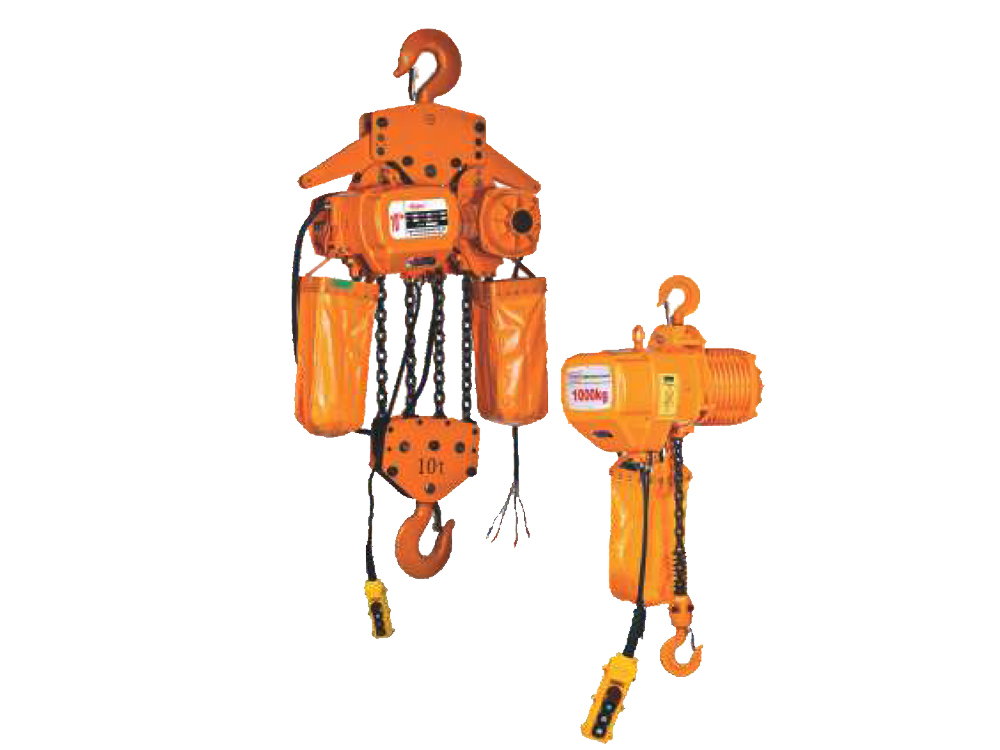

Electric Chain Hoist & Trolley
Features
- Extra Heavy Duty
- Durable Limit Switch
- Fail Safe Brake
- Phase Preventer
- Designed for Very Long Lifts
- Low Voltage Pendant Control 36V
- Overload Protection Device
- Grade 80 Alloy Steel Chain
- Unique Chain Guide Device for Smooth Operation
- 360 Degree Swivel Bottom Hook for Easy Positioning
- Completely Enclosed Body for Indoor and Outdoor Applications
Technical Specifications
| Model No. | Rated Load | Lift | Lifting Speed | Motor Power | Load Chain | No. of fall | Weight |
| (ton) | (mtr.) | (kw) | Dia (mm) | (kg.) | |||
| KECH005 | 0.5 | 3 | 6.8 | 0.75 | 6.3 | 1 | 50 |
| KECH01 | 1 | 3 | 6.6 | 1.5 | 7.1 | 1 | 54 |
| KECH02 | 2 | 3 | 3.3 | 1.5 | 7.1 | 2 | 58 |
| KECH03 | 3 | 3 | 2.2 | 1.5 | 11.2 | 3 | 68 |
| KECH05 | 5 | 3 | 2.7 | 3.0 | 11.2 | 2 | 116 |
| KECH07 | 7.5 | 3 | 1.8 | 3.0 | 11.2 | 3 | 182 |
| KECH10 | 10 | 3 | 2.7 | 3.0x2 | 11.2 | 4 | 289 |
| Model No. | Rated Load | Major Dimensions (approx.) in mm | |||||
| (ton) | A | B | D | E | H | J | |
| KECH005 | 0.5 | 455 | 240 | 285 | 165 | 540 | 28 |
| KECH01 | 1 | 520 | 260 | 300 | 176 | 650 | 32 |
| KECH02 | 2 | 520 | 260 | 300 | 236 | 835 | 40 |
| KECH03 | 3 | 520 | 260 | 350 | 205 | 950 | 48 |
| KECH05 | 5 | 615 | 295 | 430 | 325 | 1030 | 48 |
| KECH07 | 7.5 | 615 | 295 | 505 | 320 | 1200 | 80 |
| KECH10 | 10 | 630 | 315 | 890 | 445 | 1400 | 80 |

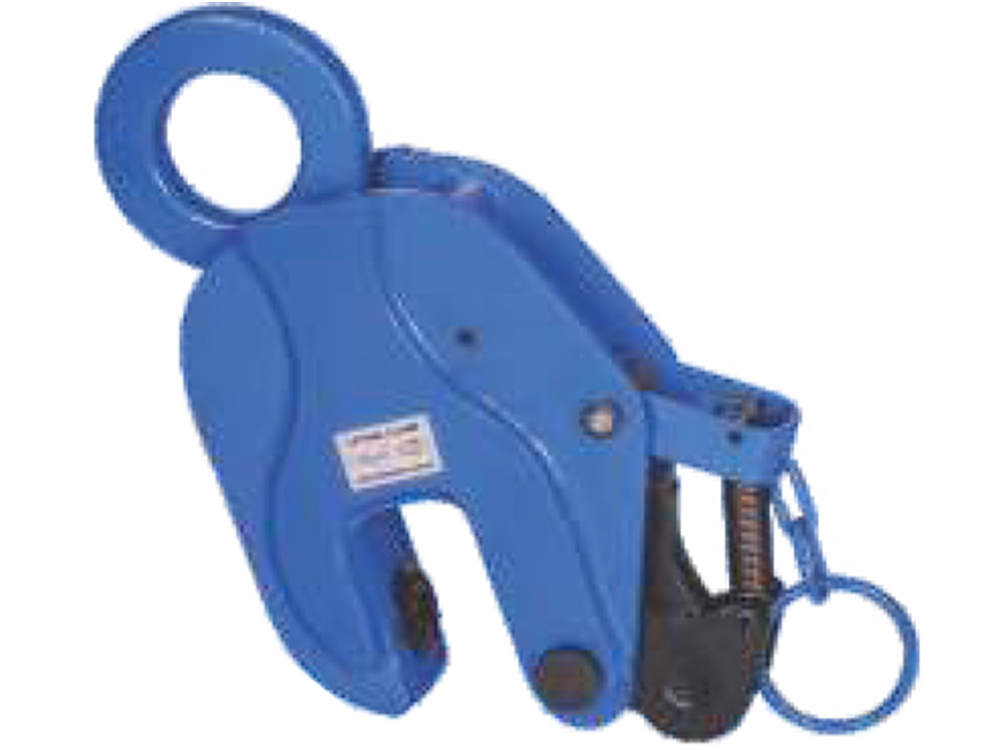

Vertical clamp
A Vertical Lift Clamp is especially designed to turn or lift a single plate or member through the usage of 90° arc. Quality construction requires to get operated with this reliable and long-lasting tool that offers the lifting of firm and straight plates. At Kepro, understanding the demand of our clients, we deliver the best quality support through our superior lifting equipment.
Salient Features
- To turn plates from horizontal to vertical positions, Vertical Plate-lifting Clamps are used
- Tough steel jaws are involved to ensure tight locking
- It is easy to handle
- Enables firm grip
- Its spring locks attach clamps to the plates easily
| Capacity (T) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 |
|---|---|---|---|---|---|---|---|---|
| Model | KVC 1 | KVC 2 | KVC 3 | KVC 5 | KVC 10 | KVC | KVC | KVC |
| Jaw Open (mm) | 0-22 | 0-30 | 0-35 | 0-50 | 0-60 | 0-85 | 0-100 | 0-100 |
| Weight (Kg) | 3.5 | 7 | 10.5 | 16 | 35 | 37 | 80 | 85 |

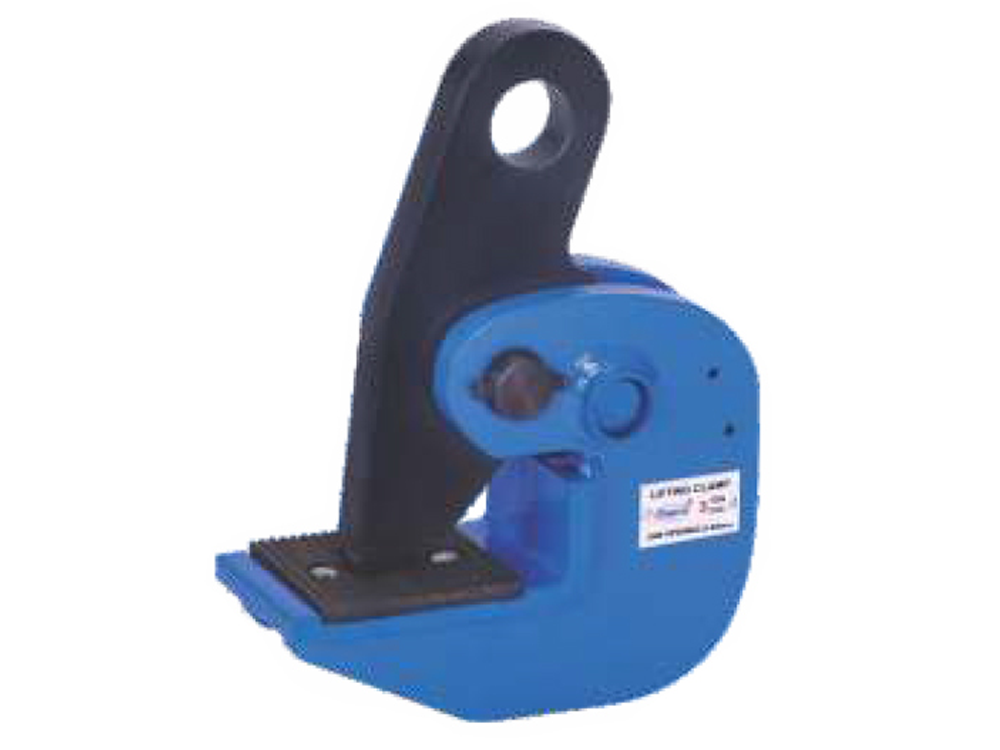

Horizontal Clamp
Horizontal Lifting Clamps are manufactured to transport and lift steel plates horizontally. We offer tested products to offer safe operation along with faster speed and greater flexibility. The customized clamps provided by Kepro help its users to run the operation with complete efficiency. User-friendliness is another important aspect associated with our horizontal clamps. Moreover, we offer high-end tool at the best possible market value.
Salient Features
- Transfer the plate horizontally only
- Both locking and non-locking models are available
- Customized lifting hook
- Is easy to use
- Has a great working limit of loads
| Capacity (T) | 1 | 2 | 3 | 5 | 8 |
|---|---|---|---|---|---|
| Model | KHC 1 | KHC 2 | KHC 3 | KHC 5 | KHC 8 |
| Jaw Open (mm) | 0-30 | 0-40 | 0-45 | 0-55 | 0-100 |
| Weight (Kg) | 4 | 7.2 | 8 | 9 | 14 |

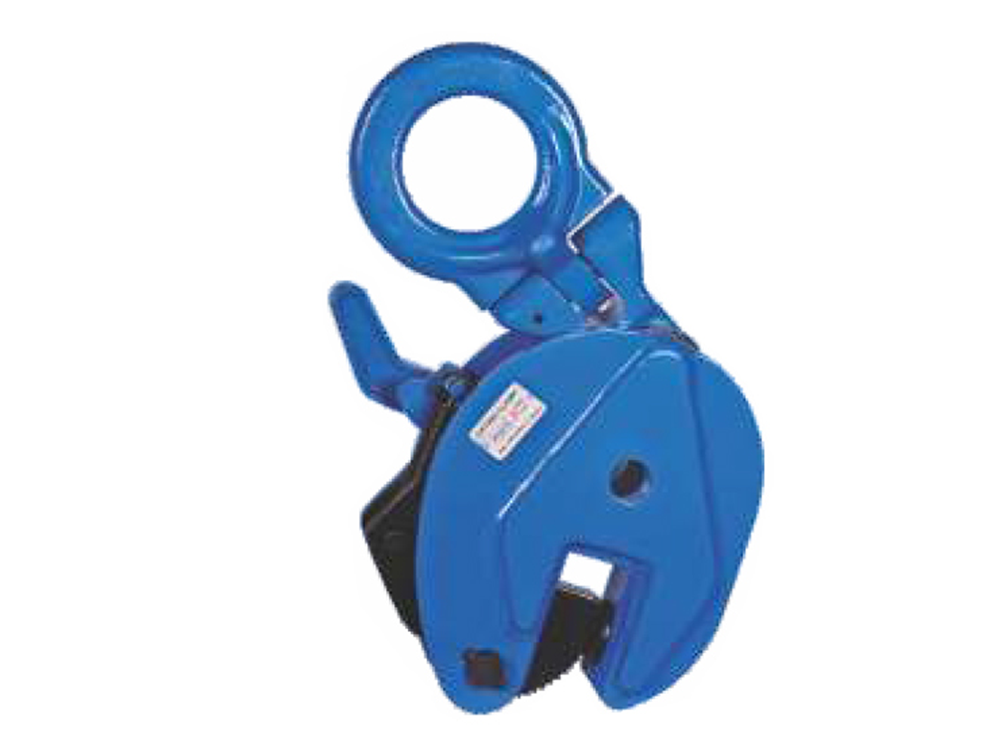

Universal Clamp
As its name indicates, a Universal Clamp is configured to perform multiple functions that incorporate the holding of plates or taking a perfect grip over the equipment. Great durability along with strong working potential is the key feature of the clamp. With us, you can take a hold on complete convenience. The tested tool and its perfect design allows all the users to operate the lifting with safety and ease.
Salient Features
- Various models of lifting clamps are available to transfer and lift steel plates
- Its hinged eyes enable it to lift loads from all directions
- Ensures optimum reliability
- Manufactured from high quality steel
- Has bigger jaw openings and outstanding lifting capacity
| Capacity (T) | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 |
|---|---|---|---|---|---|---|---|---|---|
| Model | KUC .5 | KUC 1 | KUC 2 | KUC 3 | KUC 5 | KUC 8 | KUC10 | KUC15 | KUC 20 |
| Jaw Open (mm) | 0-15 | 0-20 | 0-25 | 0-30 | 0-50 | 0-60 | 0-65 | 50-130 | 50-130 |
| Weight (Kg) | 1.7 | 4.5 | 8 | 15 | 20 | 28 | 46 | 65 | 72 |

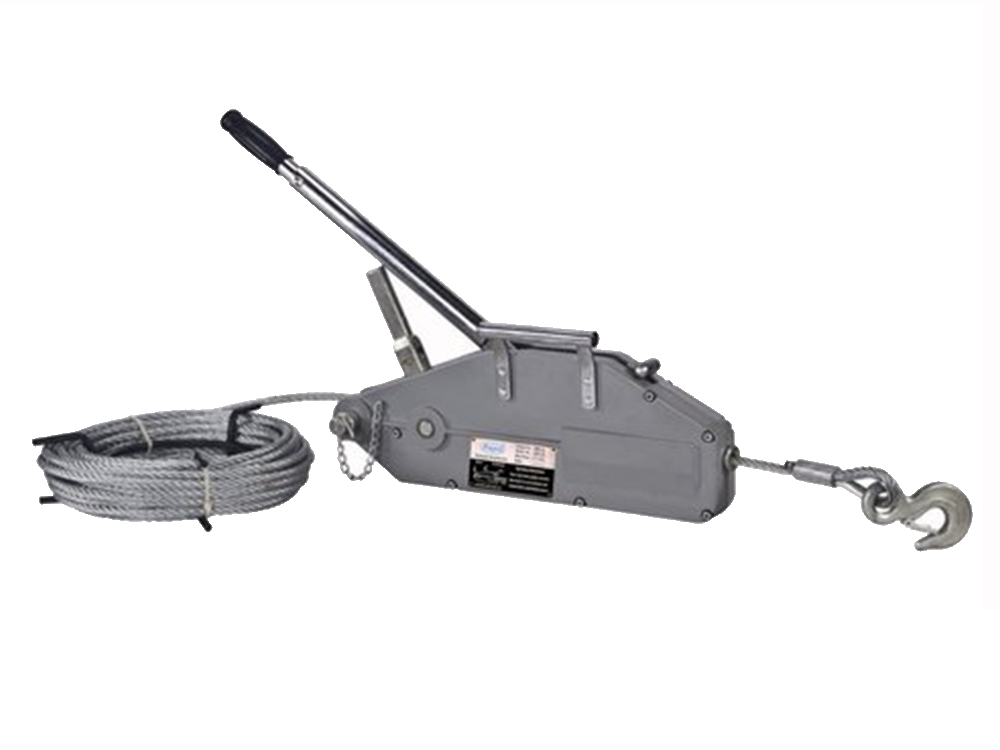

Universal Gearless Hand Operated Pulling & Lifting Machine
This device has specially been crafted after following the proper international standard. As it is quite light in weight, the whole process of controlling is very easy. The anchor bolt attached to the tool has opened some amazing possibilities of adding it with sling rope or chains. The die cast aluminium alloy body of this particular device is applicable for all kinds of heavy duty works.
Salient Features
- Manufactured in accordance with International standard for safety, quality and performance.
- High strength pressure die cast aluminium alloy body for heavy duty applications.
- Backward lever & forward lever placed in tandem providing a slim design and assuring power transfer along the center.
- Anchor Bolt offers numerous and versatile connecting possibilities with load hooks, sling rope and chains.
- Adjustable telescopic handle for smooth and easy operation.
- Jaw grips Drop-Forged from alloy steel, precision machined heat treated to prevent rope slip.
- Anchor hooks made of Drop-Forged steel.
- Specially designed Reels: Galvanized Steel Wire Rope Mounted on specially designed reel to prevent early wear and tear of wire rope and hook.
- Rope clamp system: easily disengaged with a lever allowing smooth installation of wire rope.
- Conforms to International Standard
- Pressure Die Cast Aluminium Alloy Body
- Compact Size
- Smooth function
- Safety Factor 4 Times
- Light in Weight
- Warranted for 12 months
| CAPACITY in Tonnage | Lifting Pulling | 0.8 1.2 | 1.6 2.6 | 3.2 5.2 | 5.4 8 |
|---|---|---|---|---|---|
| Model | KPL 08 | KPL 16 | KPL 32 | KPL 54 | |
| Standard Length of Rope (Meters) | 20 | 20 | 20 | 20 | |
| Dia of Wire Rope (mm) | 8.3 | 11 | 16 | 20 | |
| Effort Lever Pull at Rated Load (N) | 284 | 412 | 441 | 745 | |
| Forward Travel (mm) | 52 | 55 | 28 | 30 | |
| Weight (kg) | 6 | 12 | 22 | 57 | |
| Dimensions (mm) | A | 426 | 545 | 660 | 930 |
| B | 235 | 280 | 325 | 480 | |
| C | 64 | 97 | 116 | 152 | |
| L1 | 800 | 800 | 800 | 800 | |
| L2 | 800 | 1200 | 1200 | 1200 |
- Due to progressive development of products, Kepro reserve the right to alter the specications shown within this brochure without notice.
- Extra rope available on request.
