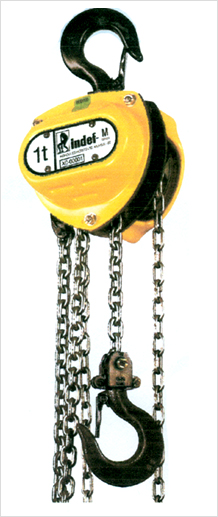

Triple spur gear chain pulley block Model - M
- Light weight & Sturdy : Ease of handling
- Lifelong lubrication : Minimal maintenance required
- Surface hardened gears : Extended working life
- Use of needle roller bearings : High operating efficiency
- Smooth passage of load chain : Machined guide rollers
- Smooth hand chain operation : Unique cover design
- Self sustaining maintenance free friction brake : Reduced downtime
- Grade 80 load chain for strength & wear resistance : Longer chain life
- Anti corrosive powder coated finish : Better aesthetics
Specifications:
| Capacity(Tonnes) | MT | 0.5 | 1 | 2 | 2.5 | 3 | 5 | 8 | 10 |
| Number of falls of load chain | NO | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 4 |

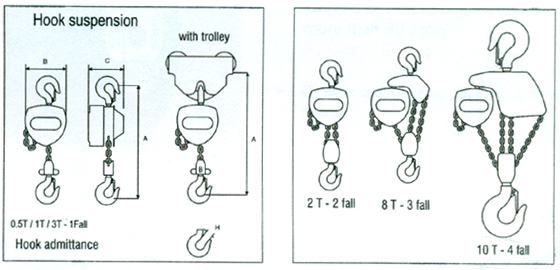

| Dimensions | |||||||||
| A Hook suspension | mm | 335 | 400 | 461 | 530 | 575 | 805 | 880 | 950 |
| With trolley, ranges 1&2 | mm | 365 | 430 | 500 | 560 | 705 | 690 | 980 | 950 |
| With trolley, ranges 3 | mm | 405 | 470 | 540 | 605 | 720 | - | - | - |
| B | mm | 155 | 180 | 180 | 238 | 230 | 280 | 430 | 480 |
| C | mm | 144 | 153 | 153 | 209 | 182 | 209 | 220 | 220 |
| H Hook admittance | mm | 27 | 32 | 32 | 42 | 42 | 51 | 75 | 75 |
| Weight at 3M | kg | 10 | 13 | 19 | 29 | 27 | 59 | 94 | 130 |
| Extra weight per additional M lift | kg | 1.4 | 1.8 | 2.6 | 3.0 | 3.0 | 5.7 | 7.9 | 10.1 |
| Running pull on hand chain | kg | 28 | 30 | 33 | 37 | 36 | 41 | 46 | 43 |
