Slingset Range of Slings

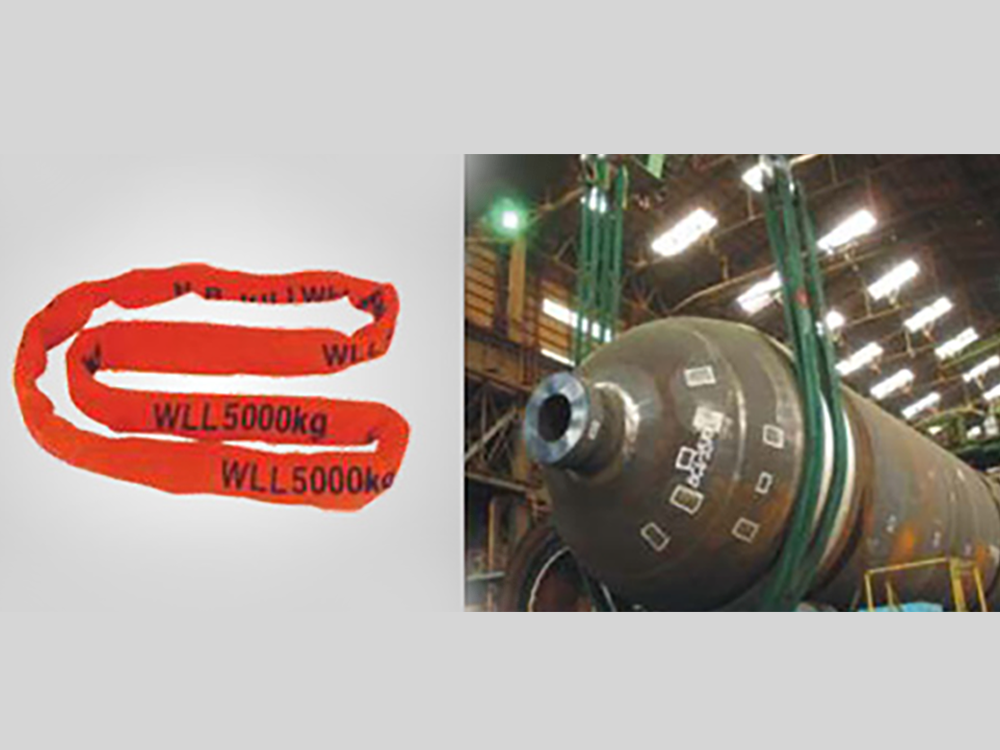

Slingset Regular Roundsling
- Single Path Polyster Roundsling (Code SR)
-
- Endless Roundsling made of High tenacity Polyster yam - This is the most basic product.
- Available in capacities from 1 MT to 40 MT Safe Working Load (SWL).
- Overload indicators to prevent and indicate overload, available at a special option.
- The right sling for price - sensitive customers

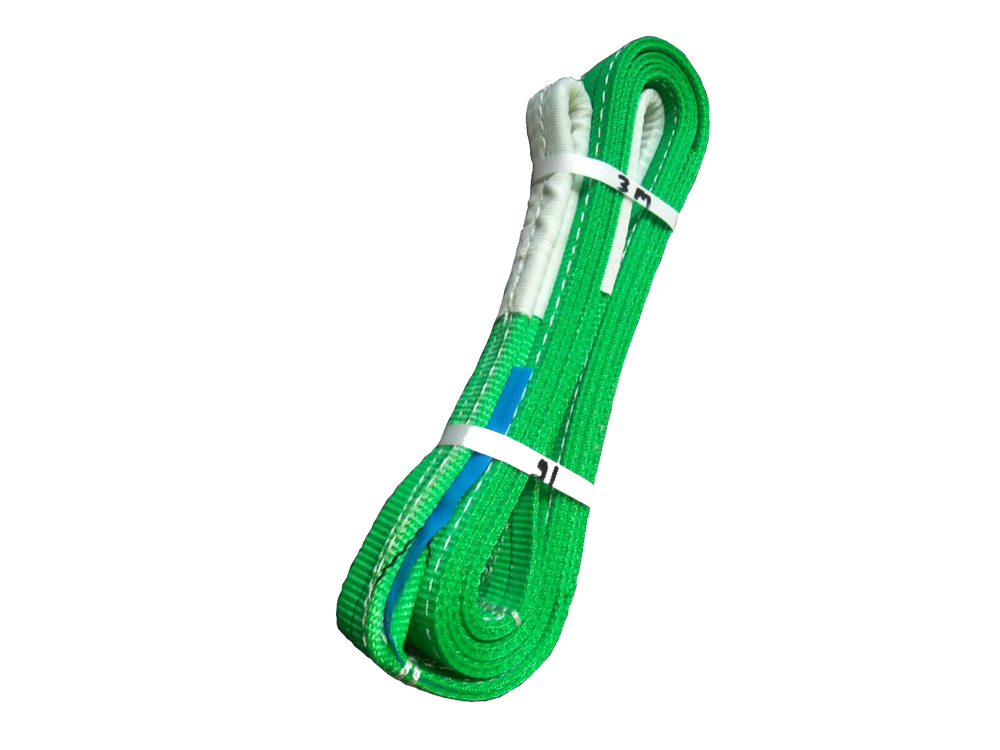

Slingset Webbing Sling
- Simplex or Duplex Slings with reinforced eyes (Code SSW or SDW)
-
- Polyster double layered Duplex webbing slings (Code SDW) or Single layered Simplex Slings (Code SSW).
- Wide and flat load bearing surface.
- Slings has reinforeced eyes at both ends.
- Colour coded for easy identifications.
- Capacity from 1 MT to 30 MT.
Safe Lifting Chart - Determine the Safe Working Load first!
| SWL = 100% of WLL (Working Load Limit) |
SWL = 90% of WLL | SWL = 200% of WLL | SWL = 140% of WLL | SWL = 100% of WLL | |||
| Round Sling Diameter Code - SR |
Twin Path Width Code - STP |
Webbing Sling Width Code - SW |
Vertical Mode Kgs | Choker Mode Kgs | Basket Mode Kgs | β = O - 90° Kgs | β = 91° - 120° Kgs |
| 32mm | 50mm | 25mm | 1 000 | 800 | 2 000 | 1 400 | 1 000 |
| 32mm | 50mm | 50mm | 2 000 | 1 600 | 4 000 | 2 800 | 2 000 |
| 32mm | 75mm | 75mm | 3 000 | 2 400 | 6 000 | 4 200 | 3 000 |
| 32mm | 75mm | 100mm | 4 000 | 3 200 | 8 000 | 5 600 | 4 000 |
| 48mm | 75mm | 125mm | 5 000 | 4 000 | 10 000 | 7 000 | 5 000 |
| 48mm | 100mm | 150mm | 6 000 | 4 800 | 12 000 | 8 400 | 6 000 |
| 48mm | 100mm | 200mm | 8 000 | 6 400 | 16 000 | 11 200 | 8 000 |
| 48mm | 100mm | 250mm | 10 000 | 8 000 | 20 000 | 14 000 | 10 000 |
| 64mm | 125mm | 300mm | 12 000 | 9 600 | 24 000 | 16 800 | 12 000 |
| 64mm | 125mm | NA | 15 000 | 12 000 | 30 000 | 21 000 | 15 000 |
| 80mm | 125mm | 600mm | 20 000 | 16 000 | 40 000 | 28 000 | 20 000 |
| 80mm | 150mm | NA | 25 000 | 20 000 | 50 000 | 35 000 | 25 000 |
| 96mm | 200mm | 900mm | 30 000 | 24 000 | 60 000 | 42 000 | 30 000 |

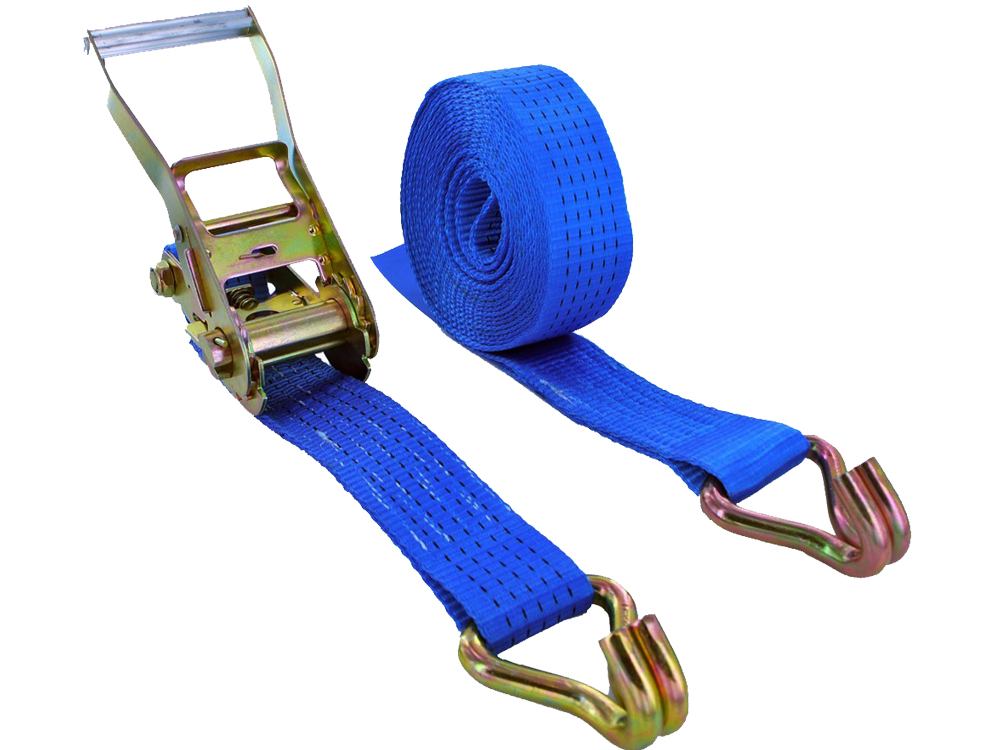

Ratchet Lashings
Slingset Ratchet Lashings are basically 'tie-downs' to secure loads on pallets, vehicles, onboard ships and aircrafts. Slingset has the widest range of Lashings / tie-downs available, from light duty to super heavy duty lashings. In India, these landings have also found on application in the power transformer industry for winding of larrge coils etc.
Technical Specifications
| Product Code | Width | WLL Ton |
| RLTP25 | 25 | 2000 |
| RLTP35 | 35 | 3000 |
| RLTP50 | 50 | 5000 |
| RLTP75 | 75 | 10000 |
